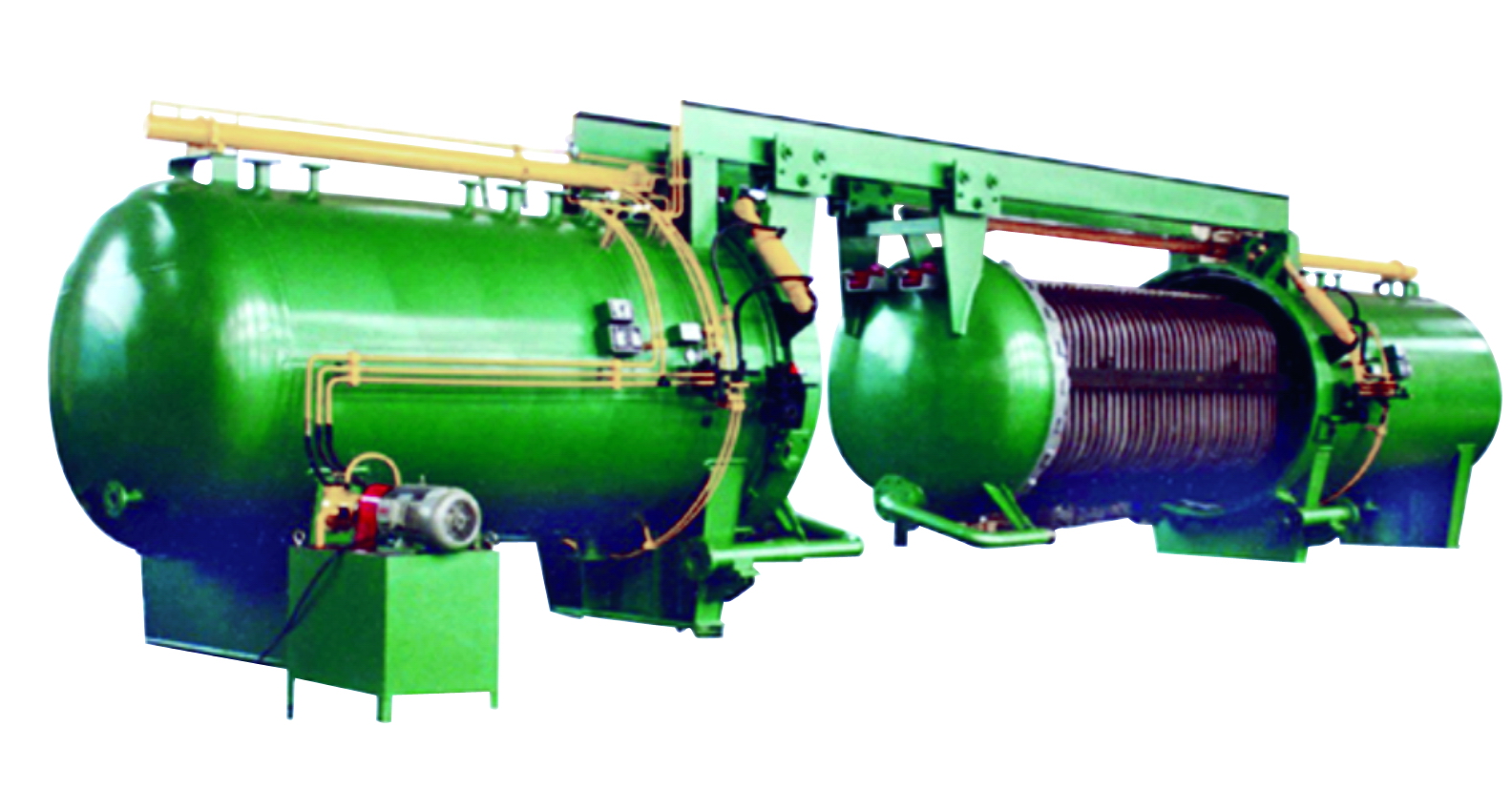

Durable Horizontal Pressure Leaf Filter For Refinery Plant Edible
Oil Solvent Extraction
Product major structures:
Filter cylinder consists of cylinder, end plate and end plate
locking device, etc. In between the pullout end-plate and flange of
the cylinder there is rubber gasket for sealing. In side of the
filter cylinder there are filter screen, collection pipe, outside
of it there are feeding port, discharge port, steam nozzle, relieve
nozzle, pressure gauge nozzle and safety valve nozzle, etc.
The filter screen plate is the major component for the filter. It
consists of multiple layers of stainless steel screens of different
specification. In the middle there is a passage for the filtrate,
at the outside there is frame. At the lower part of screen plate
there is a nozzle for the discharge port which is inserted into the
collection pipe, in between the nozzle and socket of collection
pipe there is rubber “O” ring for sealing.
The end-plate pullout device consists of hydraulic cylinder, roller
device, and vibration device. After the completion of filtration,
the filter cake is blown dry from the steam nozzle, after the
pressure is relieved from relief nozzle, the safety valve is
opened, the locking device is released, and the valve for discharge
port is opened.
Product competitive advantage:
1, Fully hermetic filter , no leakage, no pollution.
2, Filtering gauze flakes can be pulled out automatically, and easy
to be inspected and cleaned.
3, As the leaves filtering on both sides, large filtration area and
solids holding capacity can be obtained.
4, Automatically residue discharging by which labor can be largely
reduced.
5, Controlled by hydraulic thus automation is to be.
6, A large filtration area and large solids holding capacity can be
obtained .
Application:
Food industry : Syrups, edible oils, dewaxing , decolour, degrease
Chemical industries: Sulphur, aluminum sulfate, Polyaluminum chloride, plastic,
dyestuff intermediate, bleaching liquid, lubricant additives and
intermediate and high pressure polyethylene, etc.
Dry, semidry cake and clean filtrate recovery.
Product Specifications:
Area series ( ㎡) | Shell diameter series ( mm) | Work pressure ( Mpa) | Work temperature
(℃) | Proximate treatment
capacity (T/H·㎡) |
5, 10, 15, 20, 25, 30, 35, 40,
45, 50, 60, 70, 80, 90, 100, 120,
140, 160, 180, 200 | 900, 1200, 1400, 1500, 1600,
1700, 1800, 2000 | 0.4 | 150 | Oil | 0.2 |
|
| Beverage | 0.8 |
