Stainless Steel Bag Type Filter , Vegetable Oil Filter Food
Standard
Product Description:

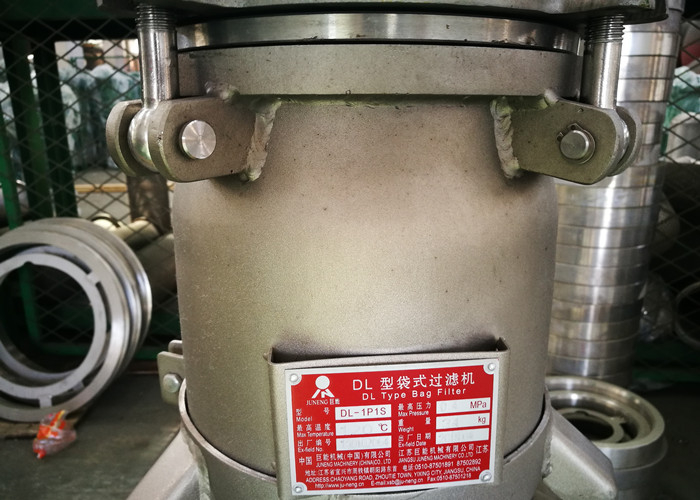

DL series bag filter is one of the pressure filter equipment , liquid flow into the filter
bag through the side-way. Filter bag itself is fitted in the
reinforce net that the qualified filtrate is achieved after the
liquid pass the filter bag which has various precision ranks.
DL bag-type filters are a kind of all purpose filter equipment with
original structure, small volume, easy and agile operation, energy
conservation, high efficiency, leak-free working mode and strong
adaptability.
DL series bag filter is mainly composed of filter cylinder,
cylinder lid, quick-opening structure, filter bag reinforce net.
The solid impurity is seized by the filter bag. The filter bag with various materials is easy to be changed and has little consumption of treating
materials.
Product Applications:
It’s widely used in paint, beer, vegetable oil, medicine, cosmetic, petroleum product,
chemical textile, light sensitive chemical, electroplate liquid,
milk, mineral water, hot solvent, emulsion, industrial water, sweet
water, resin, printing ink, industrial wastewater, fruit juice,
edible oil and wax and so on.
Product competitive advantage:
1. Small occupancy,
2. High-efficiency,
3. Enclosed operation,
4. Excellent applicability,
5. Easy changed filter bag.
Wearing parts list
Model | O-ring(External diameter ×wire diameter × number) |
Main seal gasket (1 set) (Thickness X Width X nominal diameter) |
| DL (T)-1P | Ø240×5.7×1 Ø195×5.7×2 | / |
| DL-1P | Ø210×5.7×1 Ø195×5.7×1 Ø80×5.7×1 | / |
| DL-4P | Ø210×5.7×4 Ø195×5.7×4 | 6×12×600 |
| DL-6P | Ø210×5.7×6 Ø195×5.7×6 | 6×12×800 |
| DL-8P | Ø210×5.7×8 Ø195×5.7×8 | 6×12×900 |
| DL-10P | Ø210×5.7×10 Ø195×5.7×10 | 10×14×1000 |
| DL-12P | Ø210×5.7×12 Ø195×5.7×12 | 10×14×1200 |
| DL-16P | Ø210×5.7×16 Ø195×5.7×16 | 10×14×1300 |
| DL-20P | Ø210×5.7×20 Ø195×5.7×20 | 10×14×1400 |
Company detail
Juneng Group is a large scale manufacturer of industrial products
in China. This group principally engaged with the in-house research
& development as well as manufacturing of various industrial
filters, separators , centrifuges and pumps.
Why Choose Juneng brand
1. One-top service, customised Exclusive project feasibility report
.
2. International High quality Certification production chain.
3. Exports to more than 20 countries and regions, good customers
feedback.
Product Specifications:
| Model | Filtration area ㎡ | Inlet/outlet caliber mm | Max flowrate ㎥/h | Max work pressure Mpa | Max temperature ℃ | Nominal filtration precision μm |
| DL-1P1S | 0.25 | DN40 | 10 | 0.4 | 120 | 1,5,10,15,25,40,50,65,75,80,100……1200 |
| DL-1P2S | 0.5 | DN40 | 20 |
| DL-4P1S | 1 | DN80 | 40 |
| DL-4P2S | 2 | DN80 | 80 |
