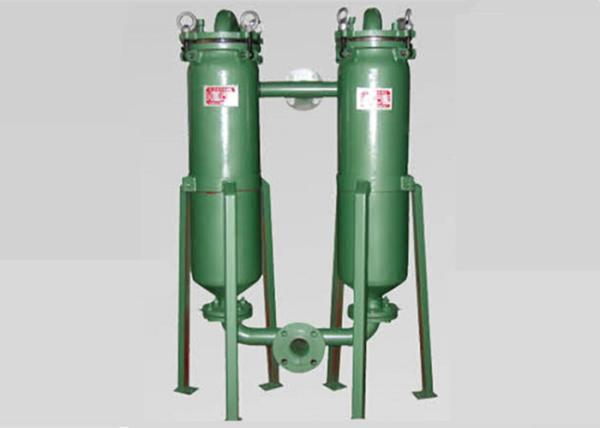

Quick Opening Structure Industrial Bags Duplex Parallel Filters
Used in Cosmetic Industry
Product competitive advantage:
1, Small occupancy,
2, High-efficiency,
3, Enclosed operation,
4, Excellent applicability.
5, Easy to be changed.
Product Description:
Duplex filter can increase the handling capacity.
DL series filter bag is mainly composed by filter cylinder,
cylinder lid, quick-opening structure, filter bag reinforce net.
DL series filter bag belongs to pressure filter equipment , liquid
flow into the filter bag through the side-way. Filter bag itself is
fitted in the reinforce net that the qualified filtrate is achieved
after the liquid pass the filter bag which has various precision
ranks.
The impurity is seized by the filter bag. The filter bag is easy to
be changed and has little consumption of materials.
Material of Filter Bags:
1. Non-woven bags
2. Nylon bags
3. Stainless steel filter net :
a. adding it in the reinforcing net can resist high temperature and
pressure, repeat washed and prolong
service life.
b. the materials are from SS304 and SS316
c. the filter precision is 25μm - 1200 μm
Product Applications:
It’s widely used in paint, beer, vegetable oil, pharmaceutical, cosmetic, chemicals, petroleum products, textile chemicals, sensitization
chemical, electroplate, milk, mineral water, hot solvent, milk
rubber, industrial water, sweet water, resin, printing ink,
industrial waste water, juice, edible oil, etc.
Product Specifications:
| Model | Filtration area ㎡ | Inlet/outlet caliber mm | Max flowrate ㎥/h | Max work pressure Mpa | Max temperature ℃ | Nominal filtration precision μm |
| DL-1P1S | 0.25 | DN40 | 10 | 0.4 | 120 | 1,5,10,15,25,40,50,65,75,80,100……1200 |
| DL-1P2S | 0.5 | DN40 | 20 |
| DL-4P2S | 2 | DN80 | 80 |
| DL-6P2S | 3 | DN100 | 120 |
| DL32P2S | 16 | DN200 | 640 |
Packing
Plastic film package inside, wooden case package outside
QC/Technical Support
1, Every company deeply understand that quality is the basic weapon
for an enterprise to win. Quality is one of the factor that helped
the business to achieve success, so we strive to provide
qualitative business.
2, Our Quality Control department is comprised of experienced
engineers, technicians and QC inspectors. The best products from
the high reputation company and will do better than any other
company.
Why Choose Juneng brand
1. International High quality Certification production chain .
2. Manufacturer, more reasonable price .
3. Solid technical support and after-sales service
After service :
1. Routine tracing will be done timely
2. Technicians are availabled for overseas service
3. Provide Clients one-yar warranty to make sure the machine work
well.
4. Suggestions and any comments &reflection from customer would
be treated in priority
FAQ:
1. Q: How can we visit your factory?
A: If you come from abroad, air to shanghai airport, then we can
pick you up at airport.
If you come from domestic city, air or train directly to Wuxi
station. We will pick you up at railway station.
2. Q: Do you give any Discount?
A: I will surely try my best to help you get those by the best
price and good service at the same time.
3. Q: What ' s the shipment terms and delivery time of your
company?
A: Well, the delivery time depend on the quantity of your order.
Usually is 20 days . For some customized machine 30 days is
necessary.
