stable operation centrifuge fuel oil water separator reduce the
separation material corrosion
Application:
Marine disk separator is mainly used in cleaning away the water,
content and impurities in the fuel and lubricating oil of ship
diesel engine etc., and used in reducing abrasion of equipment and
prolong service life of equipment. The separated heavy diesel oil
could instead of light diesel oil, which can reduce the production
cost largely. It can also used for purification and clarification
of other mineral oil as well as similar products in the fields such
as chemicals, food, pharmaceuticals, etc
Product competitive advantage:
1, There are stationary centripetal pumps for heavy phase and light
phase output. Separated heavy phase and light phase are outputted
respectively by the large and small centripetal pumps which on the
top of the drum.
2, This series of separator outfits various specific gravity rings
with different diameter, which can be selected and used according
to the density and volume of the materials.
3. It has backpressure regulating valve. Separating effect can be
regulated by regulating backpressure.
Product Specifications:
Model | Rated Treatment
capacity (L/h) | Inlet pressure (Mpa) | Outlet
pressure (Mpa) | Suck Journey
of Sump Pump | Outlet pressure
of sump pump | Motor (KW) |
JOS6 | 3000 | ≤0.05 | ≥0.2 | / | / | 4 |
Product description:

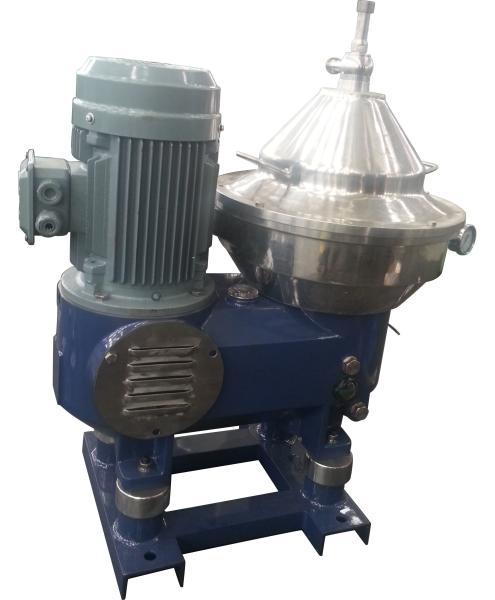

JOS series disk separators are mainly made up of inlet and outlet
mechanism, drum , machine cover, vertical shaft, horizontal shaft,
machine base, hydraulic system, etc.
The unfiltered materials (mixed liquid) are transmitted to the
heart parts of this machine( the inside of the drum). Under the
actions of strong centrifugal force, the materials will pass though
the intervals of a group of disk piece bundles.
And then, the neutral hole of the disk piece being the interface,
the liquid with higher density (heavy phase) will move outward the
neutral hole along the disk piece, flowing to the large centripetal
pump. The heavy residues will be accumulated in the sediment area,
waiting for discharge out of machine.
The liquid with lower density (light phase) will move inward and
upward along the disk piece wall and gather in the small
centripetal pump. The heavy phase and light phase are outputted by
the large centripetal pump and small centripetal pump respectively.
Introduction of Company:
Juneng Group employs a team of well-trained professional, adopts
advance EPR production management model in cooperation with
state–of–the–art apparatus and process i.e. CNC Turner, Machine
Center, Highly Accuracy Test Instrumentation, Quality and Process
Control System to ensure quality, stability, and reliability of
every product.
