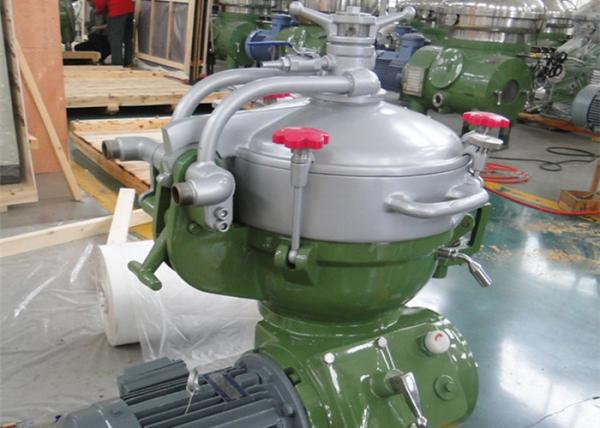

Lubricating / Light Diesel Centrifuge Oil Water Separator
Stationary Centripetal Pumps
Product description:
The heavy diesel oil is separated by separator can replace the
light diesel oil for using so that reduce the cost of production
greatly.
The marine separator is mainly used for cleaning up the moisture
and mechanical impurity in the fuel ( Light diesel oil, heavy
diesel oil, fuel oil) and lubricating oil of ships and diesel
engine, which is good to reduce the abrasion and prolong its
service-life.
The design, manufacture and inspect are accord with GB/T5745-2002
<< Marine Disk Separator>>. Stable operation, the
vibration is much lower than the national standard value. All
materials are made of stainless steel, so effectively reduce the
corrosion of separation materials.
Application:
The marine separator is mainly used for cleaning up the moisture
and mechanical impurity in the fuel ( Light diesel oil, heavy
diesel oil, fuel oil) and lubricating oil of ships and diesel
engine
Product competitive advantage:
1, There are stationary centripetal pumps for heavy phase and light
phase output. Separated heavy phase and light phase are outputted
respectively by the large and small centripetal pumps which on the
top of the drum.
2, This series of separator outfits various specific gravity rings
with different diameter, which can be selected and used according
to the density and volume of the materials.
3, It has backpressure regulating valve. Separating effect can be
regulated by regulating backpressure.
Product Specifications:
Model | Rated Treatment
capacity (L/h) | Inlet pressure (Mpa) | Outlet
pressure
(Mpa) | Suck Journey
of Sump Pump | Outlet pressure
of sump pump | Motor (KW) |
| KYDR204DD-23 | 1500 | ≤0.05 | ≥0.2 | ≥4 | ≥0.2 | 4 |
KYDH206SD-23 | 3200 | ≤0.05 | ≥0.2 | ≥4 | ≥0.2 | 5.5 |
