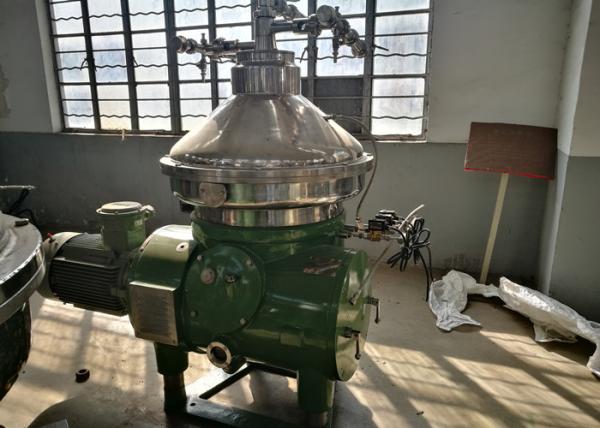

    Professional Centrifugal Oil Water Separator Stainless Steel For Kitchen Waste Oil

    Ask Lasest Price
    Brand Name : Juneng Machinery
    Model Number : DHFY211
    Delivery Time : 60 days
    Payment Terms : TT, L/C
    Supply Ability : 40 set / months
    Certification : CE、ISO9001
    Price : $48235 / set
    • Product Details
    • Company Profile

    Professional Centrifugal Oil Water Separator Stainless Steel For Kitchen Waste Oil

    Cost Reduce Stable Operation Centrifuge Oil Water Separators for Kitchen Waste Oil


    Product description:


    DHFY separator is the equipment which special for oil refining that is of high speed, stable, hermetic, efficient and fully automated. All parts & components contacting materials are made of stainless steel, can effectively minimize chemical reaction between the materials to be separated and part surface contacted. The separated light and heavy phase materials will be output by two centripetal pumps of different sizes. This machine is fed upper, so it has very low inlet pressure for materials. The driving of the separator employs hydraulic coupler and a pair of helical step-up gears, power is transmitted by liquid, so it can step up steadily and have overload protection.


    Application:


    This separator is widely used for degumming, desoaping and water washing in vegetable oil continuous refining process, is one of the best equipment for modern oil refining. Meanwhile, it is also applicable for separating suspension liquid e.g. two liquids, liquid and solid that have different specific gravities in such industries as light industry, chemical, medicine and food, etc.


    Product Specifications:


    ModelTreatment capacity (L/H)Inlet Pressure (Mpa)Outlet pressure (Mpa)Motor power (Kw)Weight (Kg)Outline dimension (mm)
    DHFY2112000-50000.050.1-0.31518801800*1200*1800
    DHFY2144000-100000.050.1-0.32222001850*1550*2050

    Product competitive advantage:


    1, There are stationary centripetal pumps for heavy phase and light phase output. Separated heavy phase and light phase are outputted respectively by the large and small centripetal pumps which on the top of the drum respectively.

    2, This series of separator outfits various specific gravity rings with different diameter, which can be used according to the density and volume of the materials.
