Three Phase Separating Disc Green Optimal Edible Oil Industrial Oil
Separator
Product description:
The edible oil quality affects the human health directly, as
human’s dietary needs enough oil , and vegetable oil and animal oil meet with their
different nutrients to meet the human body needs.
Juneng Separator can suitable for a variety of oils and fats and
provide personalized solutions in order to achieve optimal oil and
maximized production capacity.

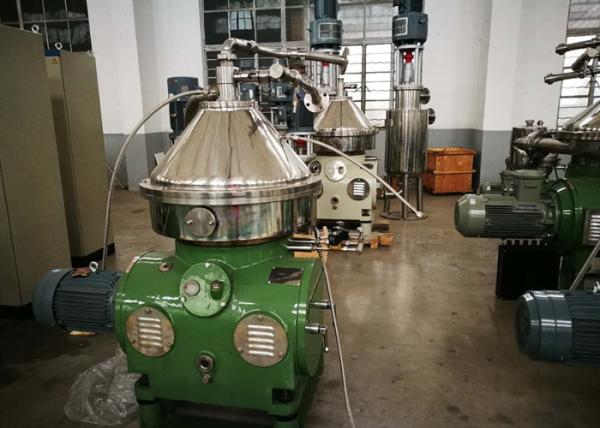

DHZ series disc centrifuge for vegetable oil refining are widely
used in continuous degumming, neutralizing, dewaxing, and washing
of vegetable oils.
The separator has a static centripetal pump for outputting
materials with light and heavy phase. Diameter of light phase
centripetal pump is stationary and the light phase can be adjusted.
Adjust the position of dividing face of light and heavy phase by
adjusting the diameter of heavy phase centripetal pump and achieve
the best separation effect. Centripetal pump of heavy phase can
return to the least position automatically when discharging so that
it can prevent oil leakage.
Introduction of Company:
Juneng Group employs a team of well-trained professional, adopts
advance EPR production management model in cooperation with
state–of–the–art apparatus and process i.e. CNC Turner, Machine
Center, Highly Accuracy Test Instrumentation, Quality and Process
Control System to ensure quality, stability, and reliability of
every product.
Application:
DHZ series disc centrifuge for vegetable oil refining are widely
used in continuous degumming, neutralizing, dewaxing, and washing
of vegetable oils .
Vegetable oil: Colza oil, cottonseed oil, Corn oil, palm oil, soybean oil, Peanut oil, Rice oil, Sesame oil, Safflower oil and son on.
Animal oil: fish oil and other various animal fat clarification.
Product competitive advantage:
The separator is equipped with an automatic control cabinet. It
consist of an industrial computer and auto overload protector, is
highly automated, highly adaptive to change in process, easy to
adjust, can greatly reduce the operation labor of workers.
The driving of the separator employs hydraulic coupler and a pair
of helical step-up gears, power is transmitted by liquid, so it can
step up steadily and carry out overload protection.
Product Specifications:
| Model | Treatment capacity (L/H) | Inlet Pressure (Mpa) | Outlet pressure (Mpa) | Motor power (Kw) | Weight (Kg) | Outline dimension (mm) | | DHZ360 | 1200-2500 | 0.05 | 0.1-0.25 | 7.5 | 1280 | 1500*1150*1500 | | DHZ470 | 2500-7000 | 0.05 | 0.1-0.25 | 15 | 1880 | 1800*1200*1800 | | DHZ550A | 5000-10000 | 0.05 | 0.1-0.25 | 18.5 | 2200 | 1850*1550*2050 | | DHZ550E | 6000-15000 | 0.05 | 0.1-0.25 | 22 | 2200 | 1850*1550*2050 | | DHZ700 | 15000-30000 | 0.1 | 0.2 | 30 | 3300 | 2100*1650*2300 | | DRZ360 | 1200-2500 | 0.05 | 0.1-0.25 | 5.5 | 750 | 1250*1050*1500 | | DRZ400A | 2000-6000 | 0.05 | 0.1-0.3 | 7.5 | 1150 | 1300*900*1450 | | DRZ400E | 4000-7500 | 0.05 | 0.1-0.3 | 7.5 | 1300 | 1300*900*1500 | | DRZ550 | 6000-18000 | 0.05 | 0.1-0.3 | 22 | 2200 | 1620*1300*2200 |
|
Commercial Cooperation and Exchange:
1. Focuse on international collaboration in technical aspect and
commercial
2. Advance the management system and experance from other
countries,such as USA, Canada, Germany, Russia etc.
Operational Tenets:
Strategy: Being professional and devoted to build up core competitiveness
Market: European quality, Chinese price
Mangement: practical, standard and successive improvement
Service: honest, responsable and timely
Talent: merits, cooperation and caring
Technology: technology leadership
