Stainless Steel Vertical Pressure Leaf Filters For Chemical /
Pharmaceutical Industry
Working principle
The main body of the filter is made up of vessel, filter gauzes,
lifting structure and automatic discharging device. Filter gauzes
are made by material of multilyer stainess steel which installed at
the center liquid pipe and cleaned up conveniently .
In the process of filtration, the unfiltered liquid with filter aid
come into the body through transmission system. After a stable
filter cake formed on the filter gauze flakes, the filtrate are
filtered through the micropores of filter cake
Filter model list
| Description | Model |
| Vertical Leaf Pressure Filter | NYB-2,NYB-7,NYB-20...NYB-90 |
| Self-cleaning Candle Filter | ZX-5,ZX-10,ZX-20...ZX-100 |
| Horizontal Leaf Pressure Filter | WYB-5,WYB-30,WYB-60...WYB-200 |
| Bag Filter | DL-1P1S,DL-1P2S,DL-8P2S...DL-32P2S |
| Multi-functions Filter | GXG-600,GXG-800,GXG-1200...GXG-3200 |
Production Description
NYB serial high Efficiency Plate Type Hermetic filter belong to the
fine filter, it is designed by advanced technology of similar
products at home and abroad and combining the situation in China.
They are widely used in lots of industries, such as chemical
industry, coating material, petroleum industry, foodstuff, pharmacy
and so on.
Vertical leaf filter with special structure, small occupy volume,
high efficiency, and the low filtering cost, and the operation is
easy and there is no environmental pollution.
Because of the different nature of the materials filtered by the
end users, the process can be properly regulated in use to get
wishful filtrate.
Application of High Efficiency Plate Type Leaf filter:
1. Oil industry :Crude oil, bleached oil, hydrided oil, radonized
oil, stearin, fatty acid, etc.
2. Petroleum chemical products: diesel oil, lubricating oil,
paraffin wax, mineral oil, etc.
3. Beverage: Beer, Juice, Wine, Milk, etc.
4. Organic chemical prodccts:various organic aid, alcohol, benzene,
aldehyde, etc.
5. Paint: Resin, vanish, dye, lacquer,etc.
6. Inorganic chemical products : bromine water, potassim cyanide,
fluorite, etc.
7. Foodstuff: gelatin, vinegar, starch, syrup, sugar water, etc.
8. Pharmaceutical products: Hydrogen peroxide solution, vitamin,
etc.
9. Mineral products: fine coal, cinder, etc.
10 Others; air, depuration of water, etc.

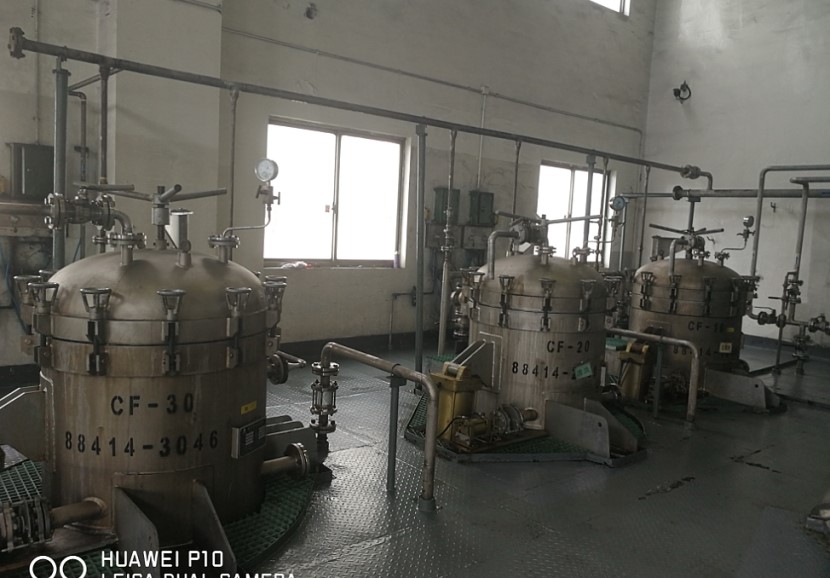

Used on site :
Our service
During selection process :
1. Professional Engineer wil recommend you the most suitable model
according to your requirement.
2. Supply reference process flow chart .
3. Supply on-site installation and operation test
4. Integration for control system and process
5. Customized size and structure
After service :
1. Months guarantee period from machine arriving date.
2. Sufficient spare parts in stock are available .
3. Technicians are availabled for overseas service.
4. 24 hours technical consultation .
5. The customer could get trained by our experienced tecnician.
6. Routine tracing will be done timely.
7. Guide you do the normal maintenance.
8. Suggestions and any comments &reflection from customer would
be treated in priority.
9. Markting team will visiting if you need.
