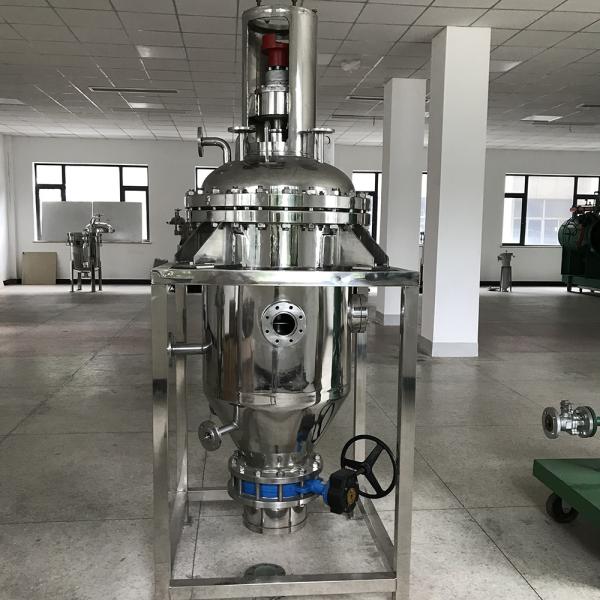

Pharmacy Industrial Oil Filter , Rotary Leaf Filter Easy To Wash
Industrial Oil Filter Introduction
The SYB series filter is mainly composed of rotating device, body,
filter disc, upper and lower sealing mechanism, main shaft, slag
discharge mechanism and other components.
The filter discs are installed horizontally on the main shaft of
the filter, and the entire filtration system is installed in the
filter body. When filtering,the liquid to be filtered full fill the
filter,it flows into the centre main shaft through the filter
discs, then flows out from the discharge port, and then get the
clear filtrate. After the filtration is completed, the motor drives
the rotating device to rotate the spindle and filter discs at high
speed, and under the action of centrifugal force, the filter
residue is removed.
Industrial Oil Filter advantage:
1.Fully hermetic filter, no leakage, no pollution
2.As the leaves are designed in a horizontal disc form, cake can
form stably which achieves good results
3.The cake is spun out by centrifugal force. It is very clean and
quick. That’s suitable to kinds of substance with different
viscosity.
4.Filter gauzes are easy to wash, and need no disassembly
5.Small occupancy of the area, easy to operate
6.The whole process can be achieved automatically
Industrial Oil Filter Specifications:
| Product Name | Area series ( ㎡) | Shell diameter series ( mm) | Work pressure ( Mpa) | Work temperature
(℃) | Proximate treatment
capacity (T/H·㎡) |
| Rotatory filter | 20 | 1000 | 0.4 | According to process requirement | | |
Industrial Oil Filter Application:
Food industry : Syrups, edible oils, dewaxing , decolour, degrease
Chemical industries: Sulphur, aluminum sulfate, Polyaluminum
chloride, plastic, dyestuff intermediate, bleaching liquid,
lubricant additives and intermediate and high pressure
polyethylene, etc.
