High Productivity GKH Series Horizontal Peeler Centrifuge Factory
Price
Product Description

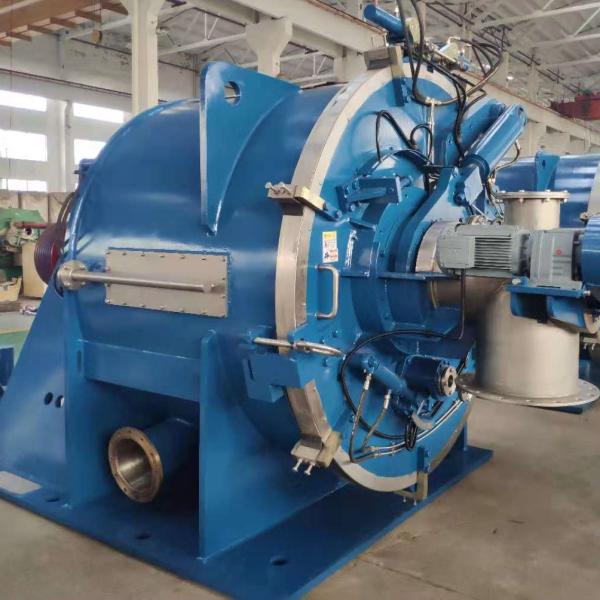

The GKH800-NA centrifuge is a siphon scraper discharge centrifuge.
The machine is equipped with a PC, and the working process is
automatically controlled.
In addition to centrifugal force, there is a vacuum siphon suction
force for the dehydration of liquid, which has higher production
capacity and separation and washing effect compared with the common
scraper discharge filtration centrifuge.
This machine has a wide range of application, besides the material
separated by the common scraper discharge filtration centrifuge, it
is also suitable for materials with small solid particles and
difficult to be separated, such as starch, calcium phosphate, etc.
During the operation of the machine, all processes, such as main
feed, auxiliary feed, discharge and recoil, are completed at the
working speed.
Adjusting items of machine
1. Adjustment of working pressure of oil pump
Adjust the overflow valve to make the oil supply system pressure
3.0-4.0mpa. Adjust the pressure to ensure the operation of each oil
cylinder under load. Take the scraper cylinder as example, scraper
easy action in the low working pressure, the rest of the cylinder
can work normally, needn’t higher the oil pressure. Increased drag
after blade wear is not included.
2.Stop position adjustment of scraper
When the scraper is working, the rocker arm on the scraper device
touches the limit bolt, and the distance between the scraper and
the press cloth (or filter) in the drum is 5~ 10mm. By adjusting
the limit bolt of the door cover and adjusting the position of the
proximity switch or switch seat, the axial clearance between the
scraper blade and the bottom of the rotary drum and the bar shall
not be less than 5mm
3. Drum loading amount, filter cake thickness according to
different materials, generally not more than 80mm, weight of dry
material less than 100kg
4. Adjust the working procedure time during operation
It is mainly determined according to the specific material, which
cannot be fixed and can meet the requirements of the material in
the centrifuge section. If the machine and equipment allow, the
production cycle can be shortened and the output can be increased.
The time range of the general working procedure is 0~30 seconds.
Feeding process is 3-60 seconds: filtering process is 0-300
seconds; The secondary feeding process is 0~60 seconds; The drying
process is 0~300 seconds; Scraping process is 18~30 seconds.
Successfully Application
General requirements for the application range of horizontal
scraper discharge centrifuges: separation of solid-liquid two-phase
systems with particle size ranging from 10 to 500um, solid phase
concentration ranging from 20 to 80% (weight concentration), and
liquid phase viscosity less than 10-2Pa. s. In addition, it can
also meet the requirements of washing the solid phase. This machine
is now widely used in industries such as chemical, light industry,
food, pharmaceutical, etc. The separated materials include ammonium
sulfate, sodium sulfate, sodium chloride, boric acid, starch,
pesticides, synthetic resins, potassium chloride, light sodium
carbonate, polyvinyl alcohol, polyoxymethylene, polyethylene,
sodium sulfate, caustic soda, salt, fertilizer, aluminum sail,
synthetic rubber, and so on.
| Starch | Vitamin B |
| VC natrium | Calcium phosphate |
| Saleratus | Polyacrylonitrile |
Technical Paramaters
| Mofel | GKH 1600 |
| Drum diameter | 1600 mm , about 31.5 inch |
| Drum length | 1000 mm , about 17.7 inch |
| Drum speed | 1550 rpm |
| Maximun separation factor | 950 |
| Main motor power | 132 Kw |
| Loading capacity | 300 Kg |
| Weight | 16000 Kg |
Our service
1 . Technicians are available for overseas service.
2 . 12 months guarantee period from machine arriving date.
3 . The customer could get trained by our experienced tecnician
4 . We always keep certain inventory level of spare parts, which means
the replacement can be sent to you timely
