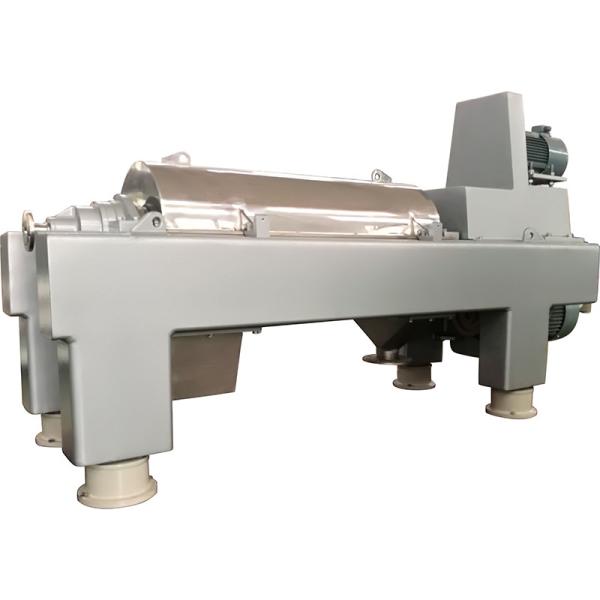

Long Service Life Food Grade 3 Phase Centrifuge For Olive Oil Plant
It is olive oil product line including olive oil centrifuge , olive oil separator and olive oil filter , they are provided by Juneng Group
and running stable on site.
Product description:
| Model | Drum inner diameter
mm | Drum length mm | Speed of drum
r/min | Factor of
separation G | Spiral difference
rotate speed
r/min | Inlet
capacity(m3/h) | Main/assist
motor (KW) |
| LW250 | 250 | 1400 | 3600r/min | ABOUT 3133 | 5-25 | 3-15m3/h | 11KW+4KW |
A wide range application , it has a good applicability for many
material and can be widely used in chemical industry, light
industry, food, paper, mining and other industrial sectors. It
applies to carry out separating liquid and solid of the suspensions
material which weight thickness of solid phase ≤ 10% (or volume
concentration of ≤ 50% after settlement24 hours) and equivalent
diameter of solid-phase particle ≥ 0.005 ~ 2 mm, liquid-solid
density difference ≥ 0.05 g / cm 3, such as calcium carbonate,
calcium sulfate, polyvinyl chloride, lees, bean dregs , soy
protein, paper pulp, vegetable oil and palm oil, kaolin, white mud,
sludge from environmental protection industry and also applies to
various types of chemical products which use settlement centrifugal
separation principle, these material all can be carried out
effectively.
Product Quality Certificate (CE):
Application:
Decanter centrifuge is most often used for clarification of liquid
containing high concentrations of solid, removing solids from
liquid. It is usually used in waste water and PVC sludge industry.
And also can be used in olive oil, sunflower oil, palm oil and tea
industry.
Product competitive advantage:
1, Adopt transducer to control the centrifuge and be used for
stepless speed regulation, so that achieve the best separation
efficiency. If the machine overload or block between spiral and
drum, the electric control will alarm automatically, automatically
cut off the inlet system; therefore it can reliable running
2, Adopt planet-gear differentia for the machine, so the torque of
pusher is large, use transducer driver for the differential motor,
differential speed can be adjust stepless, and have a well
adaptable for materials.
Introduction of Manufacturer - Juneng Machinery (China) Co., Ltd:
Long Service Life Food Grade 3 Phase Centrifuge For Olive Oil Plant
is produced by Juneng Machinery (China) Co., Ltd. which lies in
Nanjing, belonging to Juneng Group.
Juneng Group employs a team of well-trained professional, adopts
advance EPR production management model in cooperation with
state–of–the–art apparatus and process i.e. CNC Turner, Machine
Center, Highly Accuracy Test Instrumentation, Quality and Process
Control System to ensure quality, stability, and reliability of
every product.
Juneng’s success is contributed by the commitment of every member
of the Company. In addition, the specialty and potential of each
member is being respected and disinterred.
