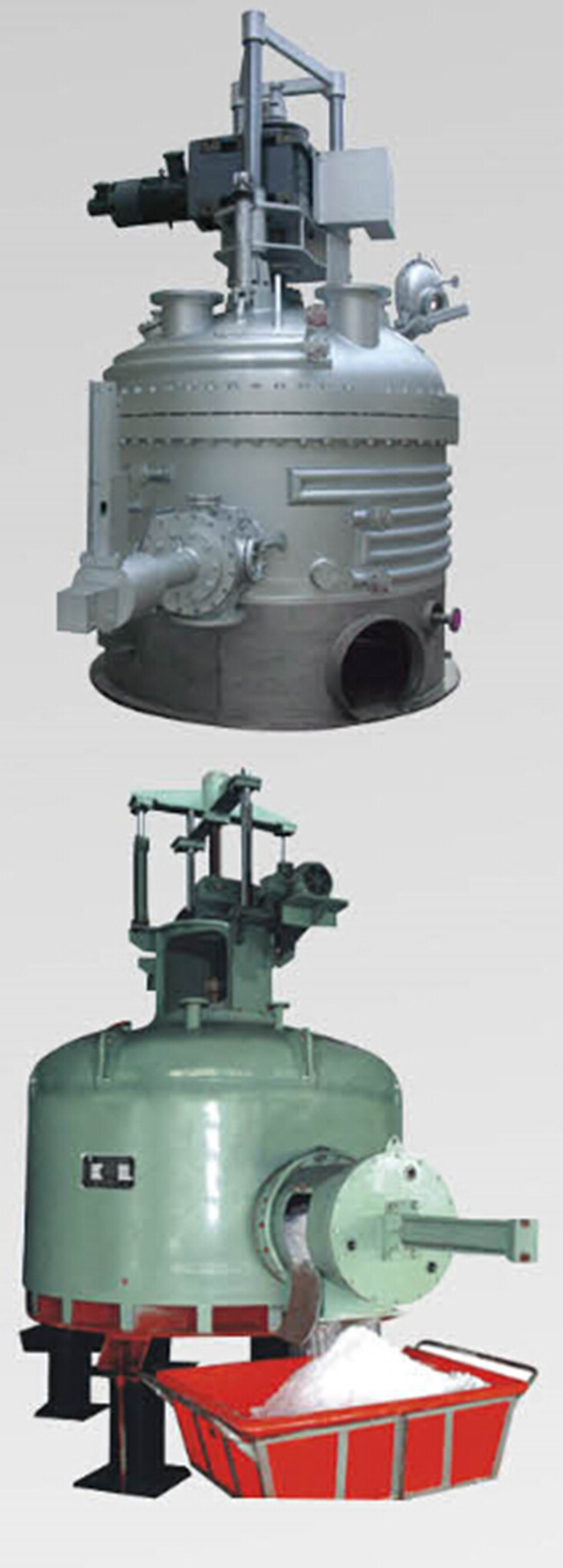

Automatic Control High Efficiency Agitated Nutsche Filter Dryer
System description
GXG series multifunctional filter contains filtering, washing and
automatically discharging solids into one. It is suitable for
“industrial grade” pharmaceuticals and chemical manufacture.
The filter is entirety welded, it filtering closed completely and
has no leakage. It consists of mixing system, filtering system,
heating and keeping, discharging system and hydraulic lift system.
The filter is safe, steady and reliable.
The tank cylinder wall and bottom use a coil pipe which can heat
the tank and ensure filtering temperature.
The hydraulic system control the mixing system up and down and it
has a mixing propeller which can rotate in the positive and
negative direction.
It has the side bleeder valve controlled by hydraulic system.
The filter medium use 5 tiers of hastelloy sintering net.
Product competitive advantage:
1, Discharge valve can discharge automatically which can lower
labor intensity.
2, Especially suitable for the material that large solid content,
and recovering liquid phase and solid phase respectively.
3, Adopting horizontal placing filter material, one time completely
filtering no remains. Filter material has unique sealing structure
which is easy to be changed.
4, Anticorrosion three in one system is made of special material
which can be suitable for multiform anticorrosion medium.
5, Stirring, mixing , beating , reacting, washing and multiform
process working can be practiced in the body and it can carry out
full automatic control.
Product Specifications:
| Model | Filtration area ㎡ | Shell
diameter (mm) | Work
pressure (Mpa) | Nominal
volume (m3) | Filter cake
height (mm) |
| GXG-600 | 0.28 | 600 | -0.1~0.3 | 0.2 | 150 |
| GXG-800 | 0.5 | 800 | -0.1~0.3 | 0.5 | 180 |
| GXG-1200 | 1.1 | 1200 | -0.1~0.3 | 1.3 | 250 |
| GXG-1600 | 2.0 | 1600 | -0.1~0.3 | 2.8 | 350 |
| GXG-2000 | 3.1 | 2000 | -0.1~0.3 | 4.8 | 400 |
| GXG-2400 | 4.5 | 2400 | -0.1~0.3 | 6.5 | 450 |
| GXG-2600 | 5.3 | 2600 | -0.1~0.3 | 8.7 | 450 |
| GXG-2800 | 6.0 | 2800 | -0.1~0.3 | 12 | 450 |
| GXG-3000 | 7 | 3000 | -0.1~0.3 | 13 | 500 |
| GXG-3200 | 8 | 3200 | -0.1~0.3 | 14.5 | 500 |
Application:
It is widely used in fine chemical, petroleum, foodstuff, printing,
pharmaceutical industries, Glyphosate, Penicillin and so on.
Product description:
GXG series multi-functions filtering, washing , drying (three in
one ) machine is a solid-liquid equipment with the functions of
filtration, washing, drying reaction and residue discharging
automatically.
