Three Phase 440V Decanter Centrifuge SS2205 Specially For Aging Oil Treatment

Ask Lasest Price
Brand Name :	Juneng
Model Number :	LW430
Certification :	ISO9001& ISO14001
Price :	USD15000~100,000/set
Payment Terms :	L/C, T/T
Supply Ability :	50 sets /months
Delivery Time :	30~50 days

Add to Cart

Product Details
Company Profile

Three Phase 440V Decanter Centrifuge SS2205 Specially For Aging Oil Treatment

Three phase decanter centrifuge specially for aging oil treatment

The three-phase separation decanter centrifuge is a fully enclosed, fully automatic and continuous process for the treatment of aging oil. This product has been successfully used in Daqing Oilfield and Liaohe Oilfield.

The aging oil from the storage tank has a high viscosity due to a long deposition time, so it must be heated and a demulsifier added to reduce the viscosity. The aged oil enters the three-phase decanter centrifuge through the pump, and the centrifuge rotates at a high speed. Under the action of a large centrifugal force, the solid (sludge) with high density settles on the drum wall. Two liquid phases with different densities form concentric cylinders, with the lighter liquid phase (oil) in the inner layer and the heavier liquid phase (water) in the outer layer. The thickness of different liquid rings can be adjusted by the liquid adjusting plate. The sludge deposited on the drum wall is conveyed by the screw conveyor to the cone end of the drum body, and discharged from the discharge port. It can be transported to the designated place by the conveyor belt. A trolley can also be used to transport sludge. The separated oil is transported to the storage tank through the oil discharge pipeline, and the separated water is also discharged through the drainage pipeline.

Working principle :

Three Phase 440V Decanter Centrifuge SS2205 Specially For Aging Oil Treatment

Detailed Product Description

Diameter	430mm	Voltage :	220V, 380V,440V,460V
Speed	Inverter Control	Electrical Components:	World Famous Brand
Operation	Continuous	Separation :	Three phase
Bearing	SKF	Material :	SS304, SS316L, SS2205
Control	PLC	Motor :	2

Other Applications :

The 3-phase decanter separates which contains oil into an oil phase, solids and virtually oilfree waste water. Because of its high dry matter, the solids can be recycled relatively easily.

In addition, the solids concentration in the waste water is lower than would be the case if nozzle separators are used in conventional process.

Advantages :

1. Lower cake transportation costs due to very dry solids

2. Better recovery of nutrients due to very high separation efficiency

3. Lower fresh water consumption compared to other processes

4. Continuous and fully automatic operation

5. 24 h operating reliability

6. Optimum wear protection

7. Energy saving design

8. Easy to operate

9. Easy to maintain

10. Simple assembly/dismantling

Features :

All parts coming into contact with the product are made of stainless steel.
3-phase AC motor for controlled torque starting via frequency converter
Approximately 80 to 90 % of the oil is recovered.
Low personnel costs due to continuous and automatic operation.
Highest g-force for higher solids output
Adjustable bowl speed via VFD
Automatic adjustment of differential speed via VFD
Two motor drive
Belts for both primary motor and secondary motor

Technological Data :

Model	Drum diameter mm	Inlet liquid capacity㎥/h	Power of main/auxiliary motor Kw	Weight Kg	Dimension (max) mm
LW250	250	1-4	11/4	1200	2650720900
LW(F)250	250	1-4	11/4	1200	2650720900
LW250(W)	250	1~5	11/4	1300	2750720900
LW350	350	5~15	22/5.5	2000	35859801238
LW(F)350	350	5~15	22/5.5	2000	35859801238
LW350(W)	350	5~18	15/5.5	2200	34121090950
LW(S)350	350	2~10	22/5.5	2000	36769801238
LW450	450	5~20	30/11	3000	438010801360
LW(F)450	450	5~20	30/11	3000	438010801360
LW450(W)	450	5~28	30/11	3200	438010801360
LW(S)450	450	5~15	37/11	3200	419510801360
LW520	520	10~26	45/15	5000	484011601465
LW(F)520	520	10~26	45/15	5000	484011601465
LW520(W)	520	10~35	45/11	5000	484011601465
LW550W	550	10-45	55/11	6500	503813881578

*** F: Ex-proof, W:Waste water, S: Three phase FS:Ex-- proof and three phase

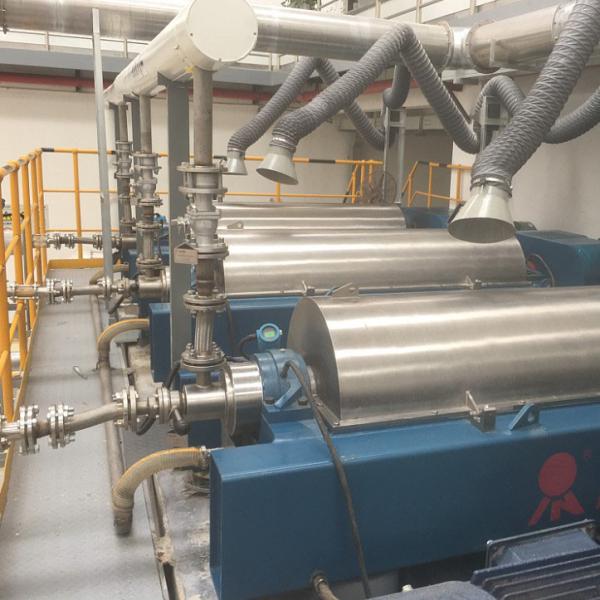

Factory :
