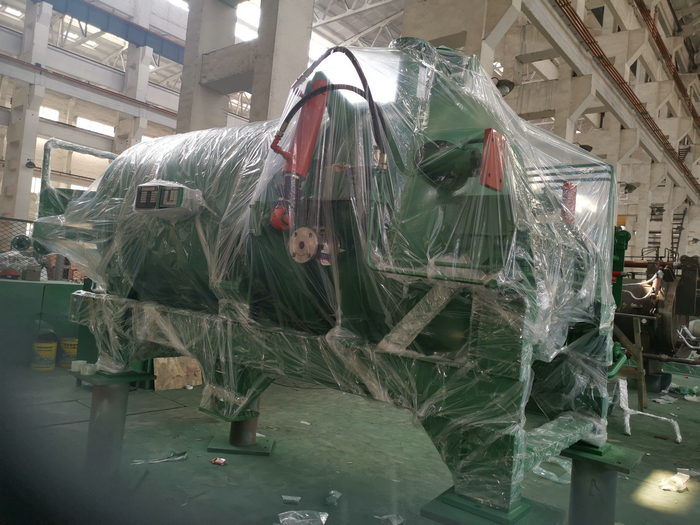

Auto Hermetic Horizontal Pressure Leaf Filter Solid - Liquid
Separation Equipment
Horizontal Pressure Leaf Filter Advantage
• Filtration area range 5 to 500 square meter
• Ideal for high polish applications, 0.1 micron removal
• Dry and/or wet solids discharge
• Automated closed System
• Jackets available - Steam / Water / Cooler
• Control options – semi automatic or fully automatic
Horizontal Pressure Leaf Filter Introduction
Thank you very much for choosing WYB series horizontal leaf filter
manufactured by our company. This equipment is an efficient, energy
saving solid-liquid separation equipment of enclosed operation
type. It is widely employed in industries such as chemical
engineering, petroleum, foodstuff and pharmaceutical, etc
List of consumable parts
| Name | Specification | Material |
| Gasket of the large cover | DN1800×10×15 | Silica gel |
| Filter screen “O” ring | ￠41 × 3.5 | Silica gel |
| Outlet pipe “O” ring | ￠118 × 5.3 | Silica gel |
| Vibrator sealing part | ZD-60 | / |
Therefore the real filtration is realized through the cake layer.
In case that the filter cake over the surface of filter screen
reaches certain thickness, the feeding shall be stopped, and
compressed air or steam shall be employed to blow dry the cake,
and clean the filter screen the discharge , the vibration dreg
discharging device shall be switched on, the dregs shall be
unloaded because of weight and vibration. As to sticky filter cake,
manual help shall be provided to clean up the dregs.
Application:
Food industry : Syrups, edible oils, dewaxing , decolour, degrease
Chemical industries: Sulphur, aluminum sulfate, Polyaluminum chloride, plastic,
dyestuff intermediate, bleaching liquid, lubricant additives and
intermediate and high pressure polyethylene, etc.
Introduction of Company:
Juneng Group has set-up a 1st class in-house laboratory for
chemical composition analysis, metallographic analysis, spectrum
analysis, performance analysis, radiographic inspection, magnetism
inspection, ultra-sonic inspection and etc.
This is to imply with the latest advance instrumentations and
rigorous working attitude to ensure every part of product is stable
and reliable.
Technonlgical Parameters:
| Area ㎡ | Shell Diametre ㎜ | Work Pressure MPa | Work Temperature℃ | Proximate Treatment Capacity(T/h.㎡) |
| 5,10,15,20,25,30 | 900,1200 | 0.4 | 150 | Oil | 0.2 |
| 35,40,45,50,60... | 1400,1500... | 0.4 | 150 | Drinks | 0.8 |
