Horizontal Centrifugal Filter Separator For Extraction , Reextract
, Washing Extract

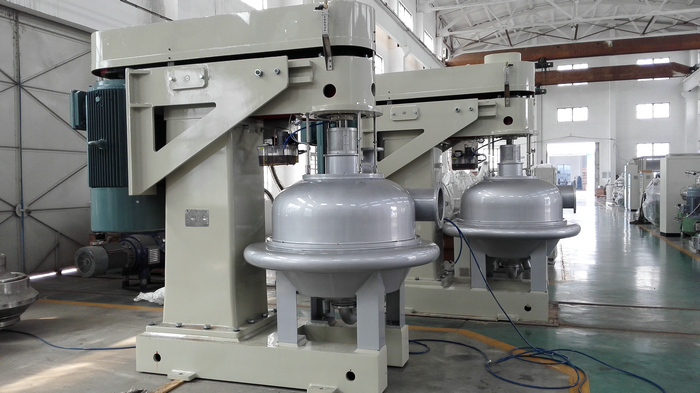

Centrifugal Filter Separator Introduction
The disc separator is a horizontal centrifuge, and the drum is
mounted on the upper end of the vertical shaft, and is driven by a
motor to rotate at a high speed through a transmission. The drum
has a set of disc-shaped parts that are nested together. There is a
small gap between the disc and the disc. The suspension (or
emulsion) is added to the drum by a feed tube located in the center
of the drum. When the suspension (or emulsion) flows through the
gap between the discs.
Centrifugal Filter Separator Application:
Separation of the extract( such as penicillin, vitamin,
Colibacillus, Antibiotics, Hormones, etc.), Microbial
Concentration, Concentration and Clarification of Fermentation
Broth, Blood Separation, etc.
In penicillin and 6-APA production process, disk separator is
mainly used in extraction, reextract, washing extract.
Operational Tenets:
Strategy: Being professional and devoted to build up core competitiveness
Market: European quality, Chinese price
Mangement: practical, standard and successive improvement
Service: honest, responsable and timely
Talent: merits, cooperation and caring
Technology: technology leadership
Introduction of Company:
Juneng Group employs a team of well-trained professional, adopts
advance EPR production management model in cooperation with
state–of–the–art apparatus and process i.e. CNC Turner, Machine
Center, Highly Accuracy Test Instrumentation, Quality and Process
Control System to ensure quality, stability, and reliability of
every product.
Centrifugal Filter Separator description:
Biopharmaceutical as a high-technology has opened up a broad
foreground for the development of medical industry and
pharmaceutical industry and greatly improved people’s lives.
Therefore, biotechnology has been identified by the world as the
key technologies and new industries in the world’s scientific and
technological development in 21st century.
The separation quality plays an important role in biopharmaceutical
process.
Centrifugal Filter Separator Specifications:
Model | Treatment
capacity (M3/H) | Inlet
pressure (Mpa) | Outlet
pressure (Mpa) | Motor
power (Kw) | Weight(Kg) | Outline
dimension (mm) |
| DHC214 | 5-15 | 0.2 | ≦0.4 | 22 | 2200 | 1980*1550*2020 |
DHC216 | 15-25 | 0.2 | ≦0.4 | 37 | 3300 | 2100*1900*2400 |
