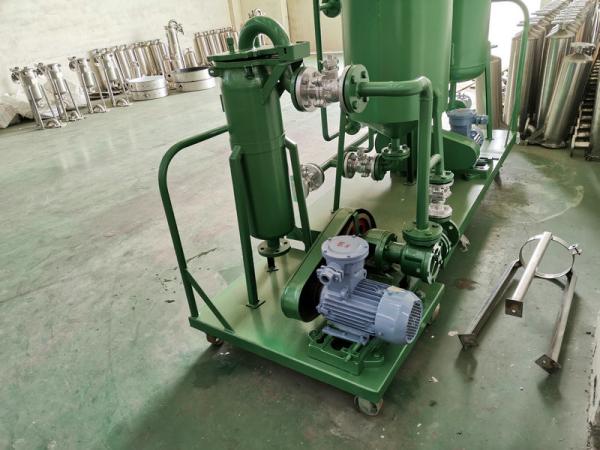

Compact Structure Vertical Pressure Leaf Filter For Food Industry ,
Chemical Industry
Vertical Pressure Leaf Filter Working Principle
High efficiency stainless steel vertical inclosed leaf filter
machine belongs to stainless steel woven mesh filter. It is the new
generation filtration equipment that we developed referencing
foreign technology, the filter has unique and compacted design, and
high efficiency. It does not consume the filter cloth, filter paper
or filter cartridge, just uses a little filter aid, so the
filtration cost is low. And the machine is easy to operate,
maintain and clean. Manual discharging and auto discharging are
available according to customer's requirement. The filter area
ranges from 2m2 to 200 m2. The housing material can be carbon steel or stainless
steel to meet clients' different needs.
Vertical Pressure Leaf Filter Plates
Vertical Pressure Leaf Filter model list
| Model | Filtration area | Filter cake volume | Treatment capacity | Work Pressure | Work temperature | Machine volume | Machine weight |
| NYB-2 | 2 | 30 | 500-1000 L/H | 0.1-0.4 Mpa | ≤150℃ | 120 L | 300 kg |
| NYB-4 | 4 | 60 | 600-1200L/H | 0.1-0.4Mpa | ≤150℃ | 250L | 400kg |
| NYB-7 | 7 | 105 | 1000-1800L/H | 0.1-0.4Mpa | ≤150℃ | 420 L | 600 kg |
| NYB-10 | 10 | 150 | 1600-3000L/H | 0.1-0.4Mpa | ≤150℃ | 800L | 900 kg |
| NYB-12 | 12 | 240 | 2000-4000L/H | 0.1-0.4Mpa | ≤150℃ | 1000L | 1100kg |
| NYB-15 | 15 | 300 | 3000-5000L/H | 0.1-0.4Mpa | ≤150℃ | 1300L | 1300 kg |
| NYB-20 | 20 | 400 | 4000-6000L/H | 0.1-0.4Mpa | ≤150℃ | 1680L | 1700 kg |
| NYB-25 | 25 | 500 | 5000-7000L/H | 0.1-0.4 Mpa | ≤150℃ | 1900L | 2000 kg |
| NYB-30 | 30 | 600 | 6000-8000L/H | 0.1-0.4Mpa | ≤150℃ | 2300L | 2500 kg |
| NYB-36 | 36 | 720 | 7000-9000L/H | 0.1-0.4Mpa | ≤150℃ | 2650L | 3000 kg |
| NYB-40 | 40 | 800 | 8000-11000L/H | 0.1-0.4Mpa | ≤150℃ | 3200L | 3200kg |
| NYB-45 | 45 | 900 | 9000-13000L/H | 0.1-0.4Mpa | ≤150℃ | 3500L | 3500kg |
| NYB-50 | 50 | 1040 | 10000-15000L/H | 0.1-0.4Mpa | ≤150℃ | 3800L | 4000kg |
| NYB-60 | 60 | 1200 | 11000-17000L/H | 0.1-0.4Mpa | ≤150℃ | 4500L | 4500kg |
| NYB-70 | 70 | 1400 | 12000-19000L/H | 0.1-0.4Mpa | ≤150℃ | 5800L | 5500kg |
| NYB-80 | 80 | 1600 | 13000-21000L/H | 0.1-0.4Mpa | ≤150℃ | 7200L | 6000kg |
| NYB-90 | 90 | 1800 | 14000-23000L/H | 0.1-0.4Mpa | ≤150℃ | 7700L | 6500kg |
Main use and Application of Pressure leaf filter :
1. The food industry: activated carbon decolorization and
filtration of sugar, glucose syrup, fruit juice, clarification and
filtration wine, soft drinks and other.
2. Chemical industry: petrochemical industry, inorganic chemicals,
separation and crystallization of organic chemicals in the process
of the body, filtration and separation of various catalysts,
chemical products, decolorization and filtration.
3. Environmental protection industry: River and lake, water, sewage
treatment station supernatant insurance purification filters,
swimming pool water purification filter back to the.
4. Oil industry :Crude oil, bleached oil, hydrided oil, radonized
oil, stearin, fatty acid, etc.
5. Petroleum chemical products: diesel oil, lubricating oil,
paraffin wax, mineral oil, etc.
6. Beverage: Beer, Juice, Wine, Milk, etc.
Company detail :
Juneng Group is a large scale manufacturer of industrial products
in China. This group principally engaged with the in-house research
& development as well as manufacturing of various industrial
filters, separators , centrifuges and pumps.
The Company is proud to be the leader in such industry with
approximately 90% domestic market share in Oils & Fats industry,
Chemical industry, Pharmaceutical industry, Beverage industry,
Petrol-chemical industry, and now is one of the well-known
producers and suppliers in World .
The Company now has its three production bases with a total
capacity of 280,000 square meters in Nanjing city and Yixing City ,
permanent workforces not less than 1500 people and the production
line is well equipped with more than 2000 inits of advanced
production equipment and test Instrumentation .
After service :
1. Months guarantee period from machine arriving date.
2. Sufficient spare parts in stock are available .
3. Technicians are availabled for overseas service.
4. 24 hours technical consultation .
5. The customer could get trained by our experienced tecnician.
6. Routine tracing will be done timely.
7. Guide you do the normal maintenance.
8. Suggestions and any comments &reflection from customer would
be treated in priority.
9. Markting team will visiting if you need.
FAQ:
1 ) Q: How can we visit your factory?
A: If you come from abroad, air to shanghai airport, then we can
pick you up at airport.
If you come from domestic city, air or train directly to Wuxi
station. We will pick you up at railway station.
2) Q: How do you ensure the quality of your products?
A: Our Company is a state owned enterprise with more than 30 years
experience , strict operation policy is performed, advanced
processing machines guarangtee the precision of all components,
workers with operation license, parts get multiprocessing,
transmission& electrical parts are of international famous brand.
Series of test and inspection are done in the
whole producing state.
3) Q: What payment methods your company accept?
A: We accept most of the payment methods , but mainly accept T/T,
L/C at sight .
4) Q: How long is the warranty time for your products?
A: Our officially promised warranty time is 12 months after
commissioning .
5) Q: I haven ' t done business with you company before, how can I
trust your company ?
A: Our company has been in Alibaba.com for 10 years, which is
longer than most of our fellow suppliers, we have been golden
suppliers for years.
What ' s more, we have got quite a lot authority certificates, for
example, CE, ISO9001, Alibaba onsite check certificate. I hope
those above will be persuasive enough. Our Trade Assurance Limit is
US$ 42,000,and it will still going up.
6) Q: What ' s the shipment terms and delivery time of your
company?
A: Well, the delivery time depend on the quantity of your order.
Usually is 20 days . For some customized machine 30 days is
necessary.
7) Q: Do you give any Discount?
A: I will surely try my best to help you get those by the best
price and good service at the same time.
