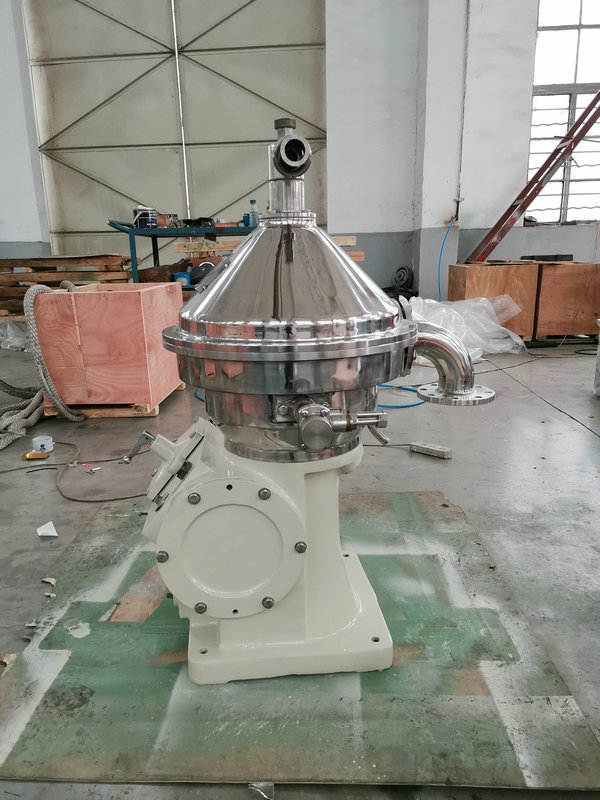

Smooth Processing Milk And Cream Separator 2000-5000 L/H Treatment
Capacity
Milk And Cream Separator Specifications
1) Milk separator and purifier mainly used skim milk, whey
separation, butter, wheat shock shower, casein, cheese production,
such as anhydrous butter production process of centrifuge
enrichment. And the material contact parts are made of stainless
steel, in line with food hygiene requirements.
2) The Milk Separator can also be used to liquid-solid twophase
separation of similar materials in the industry of juice, beverage
and Chinese traditional medicine, etc.
3) The Milk Separator adopts automatic control, and has the
advantages such as high efficiency, low material consumption,
convenient operation and economic maintenance cost.
4) The clear liquid is pumped out by centripetal pump, the sludge
is discharged automatically and partly.
5) The Milk Separator is one kind of rotary machine with high
speed. After accurate dynamic balancing, it can run for long time
with low vibration, safety and security.
The technical parameters of DHNZ series are as flowings:
| Model | Treatment capacity (L/H) | Inlet Pressure (Mpa) | Outlet pressure (Mpa) | Motor power (Kw) | Weight (Kg) | Outline dimension (mm) |
| DHN360 | 2000-5000 | 0.05 | 0.1-0.35 | 7.5 | 1200 | 1530*1150*1500 |
| DHN470 | 5000-10000 | 0.05 | 0.1-0.4 | 15 | 1600 | 1800*1200*1750 |
| DHN550 | 10000-20000 | 0.05 | 0.1-0.4 | 22 | 2300 | 1950*1550*1960 |
| DHN616 | 25000-35000 | 0.1 | 0.3 | 37 | 3000 | 2185*1728*2082 |
| DHNZ204 | 1000-1500 | 0.05 | 0.1-0.2 | 4 | 520 | 810*850*1350 |
| DHNZ360 | 1000-3000 | 0.05 | 0.1-0.3 | 7.5 | 1200 | 1530*1150*1500 |
| DHNZ470 | 3000-7000 | 0.05 | 0.1-0.4 | 15 | 1600 | 1800*1200*2030 |
| DHNZ550 | 5000-10000 | 0.05 | 0.1-0.4 | 22 | 2300 | 1950*1550*1960 |
Milk And Cream Separator Application area:
1 Warm milk separation
2 Cold milk separation
3 Whey separation
4 Buttermilk separation
This series cream separator come complete with control unit,
electric motor, inlet and outlet devices, set of erosion-protective
parts, illuminated sight glass box for light phase outlet,
vibration switch,base plate, set of tools and standard set of
spares
Packaging & Delivery
| Packaging Details: | standard wooden packing |
|---|
| Delivery Detail: | 50days |
|---|
QC/Technical Support
1, Every company deeply understand that quality is the basic weapon
for an enterprise to win. Quality is one of the factor that helped
the business to achieve success, so we strive to provide
qualitative business.
2, Our Quality Control department is comprised of experienced
engineers, technicians and QC inspectors. The best products from
the high reputation company and will do better than any other
company.
Juneng Group Service:
Pre-sale service:
1. Prompt in response
2. Price competitiveness as compare with other supplier
3. Factory visit is available if you need.
After service :
1. Routine tracing will be done timely.
2. 24 hours technical consultation
3. Sufficient spare parts in stock are available.
