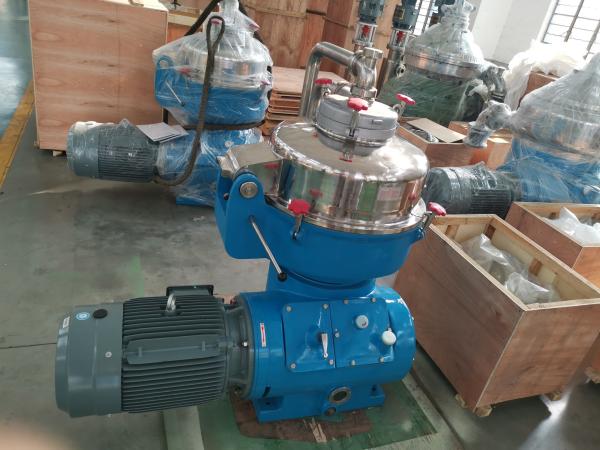

Low Discharge Industrial Continuous Centrifuge , Disk Bowl
Centrifuge
Industrial Continuous Centrifuge Working Principle
The motor actuates the bowl to rotate around spindle through
transmission system. The separated suspension liquid enters into
bowl through the feed pipe on top, and falls on the material
distribution tray. Under the function of centrifugal force, it
flows to the wall of bowl, and the liquid phase is thrown into the
space of machine cabinet through gauze and filter opening on the
wall of bowl and collected on the under pan, to be discharged via
liquid drain pipe, while the solid phase is retained on the inner
side of the filter gauze. If rinse is required, washing water is to
be added for rinse through washing pipe. After dehydration is
completed, the bowl will stop, then the solid-phase substances will
be discharged manually.
Industrial Continuous Centrifuge Advantage
1. Big diametre of frum, large area of disc, strong capability of
separation, excellent effect of production.
2. Adopting top-suspension driving, which makes the separator with
high rotation stability, and largely improves the using life of
bearings and main shaft.
3. Adopting automatic control of lubricating oil circuit, which
protects and prolongs the using life of driving system.
4. Adopting big nozzles, which has big feed capability, reduces the
chances of block, assuring the continous production.
Industrial Continuous Centrifuge Specification
Model | Treatment capacity (L/H) | Speed of drum | Motor power (Kw) | Weight(Kg) | Outline dimension (mm) |
| DPF800 | 22-115 | 2750-3300 | 132/110 | 7800 | 2800*1500*2200 |
DPF935 | 45-225 | 2250-3 050 | 250-220 | 11000 | 3200*1800*3100 |
Industrial Continuous Centrifuge Details
Application
It's mainly used in pre-concerntration starch, separation of starch
and gluten, concerntration of gluten(protein), clarify of process
water in the after step and so on.
